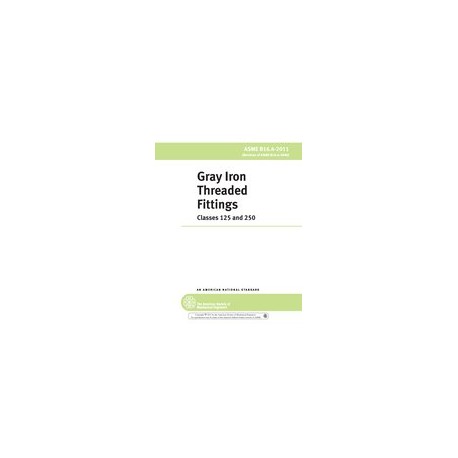

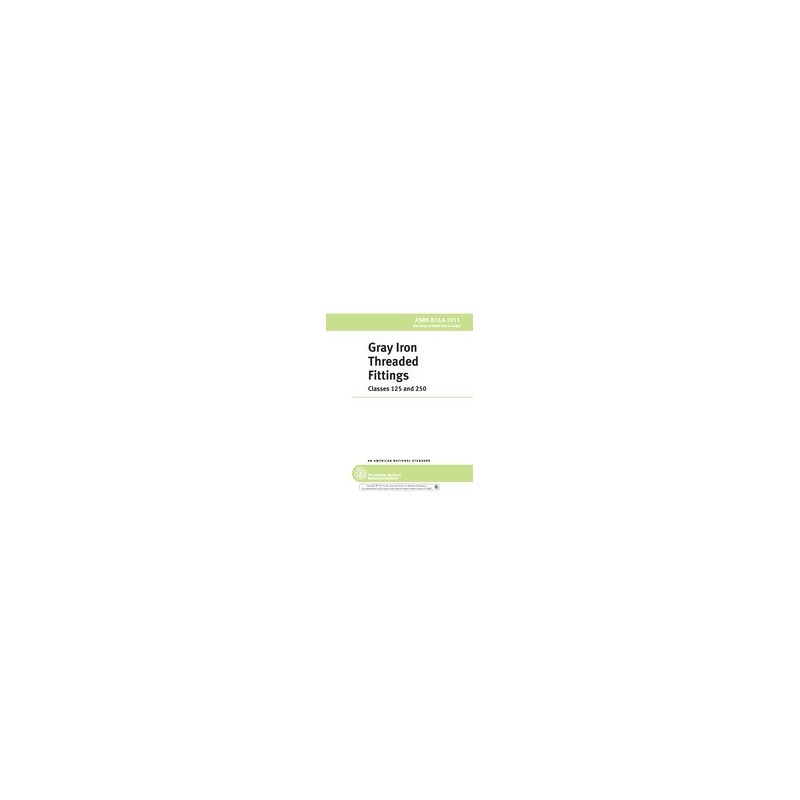

ASME B16.4-2011 Gray Iron Threaded Fittings: Classes 125 and 250

standard by ASME International, 09/15/2011

Full Description

This Standard for gray iron threaded fittings, Classes 125 and 250 covers: (a) pressure-temperature ratings (b) size and method of designating openings of reducing fittings (c) marking (d) material (e) dimensions and tolerances (f) threading, and (g) coatings.

More details

In stock

$32.12

-56%

$73.00

More info

000825U001


Gray Iron Threaded Fittings

Classes 125 and 250


AN A MERICAN NA TIONAL S T AND ARD




ASME B16.4-2011

(Revision of ASME B16.4-2006)

ASME B16.4-2011

(Revision of ASME B16.4-2006)


Gray Iron Threaded Fittings

Classes 125 and 250



AN AMERICAN NA TIONAL S T AND ARD



Three Park Avenue • New York, NY • 10016 USA


Date of Issuance: September 15, 2011


The next edition of this Standard is scheduled for publication in 2016.


ASME issues written replies to inquiries concerning interpretations of technical aspects of this Standard. Periodically certain actions of the ASME B16 Committee may be published as Cases. Cases and interpretations are published on the ASME Web site under the Committee Pages at https://cstools.asme.org as they are issued, and will be published within the next edition of the standard.


ASME is the registered trademark of The American Society of Mechanical Engineers.


This code or standard was developed under procedures accredited as meeting the criteria for American National Standards. The Standards Committee that approved the code or standard was balanced to assure that individuals from competent and concerned interests have had an opportunity to participate. The proposed code or standard was made available for public review and comment that provides an opportunity for additional public input from industry, academia, regulatory agencies, and the public-at-large.

ASME does not “approve,” “rate,” or “endorse” any item, construction, proprietary device, or activity.

ASME does not take any position with respect to the validity of any patent rights asserted in connection with any items mentioned in this document, and does not undertake to insure anyone utilizing a standard against liability for infringement of any applicable letters patent, nor assumes any such liability. Users of a code or standard are expressly advised that determination of the validity of any such patent rights, and the risk of infringement of such rights, is entirely their own responsibility.

Participation by federal agency representative(s) or person(s) affiliated with industry is not to be interpreted as government or industry endorsement of this code or standard.

ASME accepts responsibility for only those interpretations of this document issued in accordance with the established ASME procedures and policies, which precludes the issuance of interpretations by individuals.


No part of this document may be reproduced in any form, in an electronic retrieval system or otherwise,

without the prior written permission of the publisher.


The American Society of Mechanical Engineers Three Park Avenue, New York, NY 10016-5990


Copyright © 2011 by

THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS

All rights reserved Printed in U.S.A.


CONTENTS

Foreword iv

Committee Roster vi

Correspondence With the B16 Committee vii

Summary of Changes viii

  1. Scope 1

  2. General 1

  3. Pressure–Temperature Ratings 1

  4. Size 2

  5. Marking 2

  6. Material 2

  7. Dimensions and Tolerances 2

  8. Threading 2

  9. Ribs 3

  10. Plugs, Bushings, and Locknuts 3

  11. Face Bevel 3

  12. Coatings 3

Figures

  1. Identification of Reducing Fittings 2

  2. Gaging of Chamfered Internal Threads 3

Tables

  1. Pressure–Temperature Ratings 2

  2. Dimensions of Class 125, 90-deg and 45-deg Elbows, Tees, and Crosses

    (Straight Sizes) 4

  3. Dimensions of Class 125, 90-deg Elbows and Crosses (Reducing Sizes) 5

  4. Dimensions of Class 125 Tees (Reducing Sizes) 6

  5. Dimensions of Class 125 Caps, Reducing Couplings, and Closed- and Open-Pattern Return Bends 9

  6. Dimensions of Class 250, 90-deg and 45-deg Elbows, Tees, and Crosses

    (Straight Sizes) 10

  7. Inspection Tolerances 10

    Mandatory Appendices

    1. Dimensions of Fittings in U.S. Customary Units 11

    2. References 19

Nonmandatory Appendix

A Quality System Program 20


iii


FOREWORD


In the spring of 1921, when the unification and extension of the flanged and threaded fittings standards in force in this country seemed desirable, the American Engineering Standards Committee [subsequently the American Standards Association and currently the American National Standards Institute (ANSI)] authorized the organization of a Sectional Committee on the Standardization of Pipe Flanges and Flanged Fittings. The following organizations served as joint sponsors: Heating, Piping, and Air Conditioning Contractors National Association (later the Mechanical Contractors Association of America), Manufacturers Standardization Society of the Valve and Fittings Industry, and the American Society of Mechanical Engineers.

At the second meeting of the Sectional Committee held in New York on December 16, 1921, a report was submitted by the Subcommittee on Threaded Fittings. It indicated clearly that good progress was already being made toward the development of an American Standard for cast iron threaded fittings intended for services of 125 and 250 lb steam pressure. The review of the proposals of the manufacturer’s Committee of Five was assigned to the Subcommittee on Threaded Fittings, and after a thorough study, it made its report to the Sectional Committee. The Standard was finally completed, approved, and published in December, 1927 with the designation ASA B16d-1927.

To bring this Standard in line with the best current practice, a revision was begun in September, 1936, providing for hydraulic service ratings, material specifications, tolerances on alignment, threading of fittings, and dimensions of some additional sizes, as well as dimensional tables covering reducing couplings, caps, and closed- and open-pattern return bends. The revision was approved in March, 1941.

The Standard was reviewed in 1947 and was approved by the Sectional Committee. Following approval of the sponsor bodies, the Standard was presented for approval as an American Standard. It received that approval in December, 1949, and was given the new designation ASA B16.4-1949. A review was started in 1961 by Subcommittee No. 2. A draft involving only minor changes was approved by the Sectional Committee and sponsor bodies. Final ASA approval was granted

on December 26, 1963.

As the changes in organization occurred and standards designation increased, Subcommittee No. 2 began a review in 1968. Minor changes included updating references and bringing the Standard into conformance with adopted policies of the B16 Committee. Final approval was granted by the American National Standards Institute on January 20, 1971.

In 1975, Subcommittee B (formerly 2), in its regular five-year review of the document, recom- mended the addition of metric (SI) equivalents and updating of referenced standards. The revised edition received approval by ANSI on August 30, 1977.

In 1982, American National Standards Committee B16 became the ASME B16 Standards Committee, operating with the same scope under ASME procedures accredited by ANSI. A new revision of the Standard, including rationalization of metric equivalent dimensions and updating of referenced standards, was approved and published as ANSI/ASME B16.4-1985.

The 1992 edition of B16.4 omitted metric units, established U.S. customary units as the standard, and provided for electrodeposition as an alternative to hot dipping for zinc coating. Editorial revisions were made to clarify and correct the text. Following approval by the Standards Committee and ASME, approval as an American National Standard was given on December 2, 1992, with the designation ASME B16.4-1992.

In the 1998 edition of ASME B16.4, the list of referenced standards was updated, a Quality System Program Annex added, an issued Interpretation included, and several editorial revisions made. Following approval by ASME B16 Subcommittee B and B16 Standards Committee, ANSI approved this American National Standard on November 20, 1998.

Work started during 1999 to revise the Standard to include metric units as the primary reference units while maintaining U.S. Customary units in either parenthetical or separate forms. Following


iv

approval by the Standards Committee and the ASME Board, this revision to the 1998 edition of this Standard was approved as an American National Standard by ANSI on November 9, 2006. In this edition, references to ASME Standards were revised to no longer list specific edition years; the latest edition of ASME publications applies unless stated otherwise. Materials manufactured to other editions of the referenced ASTM Standards have been permitted to be used to manufacture fittings meeting the requirements of this Standard as long as the fitting manufacturer verifies the material meets the requirements of the referenced edition. Following approval by the Standards Committee and the ASME Board on PTCS, this revision to the 2006 edition was approved as an American National Standard by ANSI on August 9, 2011 with the new designation,

ASME B16.4-2011.

Requests for interpretation and suggestions for revision should be sent to the Secretary, B16 Committee, The American Society of Mechanical Engineers, Three Park Avenue, New York, NY 10016-5990.


v


ASME B16 COMMITTEE

Standardization of Valves, Flanges, Fittings, and Gaskets

(The following is the roster of the Committee at the time of approval of this Standard.)


STANDARDS COMMITTEE OFFICERS

W. B. Bedesem, Chair

G. A. Jolly, Vice Chair

D. R. Sharp, Secretary



A. Appleton, Alloy Stainless Products Co., Inc.

R. W. Barnes, Anric Enterprises, Inc.

W. B. Bedesem, Consultant

STANDARDS COMMITTEE PERSONNEL

G. A. Jolly, Vogt Valves/Flowserve Corp.

M. Katcher, Haynes International

W. N. McLean, B&L Engineering

R. M. Bojarczuk, ExxonMobil Research and Engineering Co.

D. F. Buccicone, Elkhart Products Corp.

A. M. Cheta, Royal Dutch Shell

M. A. Clark, Nibco, Inc.

G. A. Cuccio, Capitol Manufacturing Co.

  1. E. Davila, Crane Energy

  2. R. Frikken, Becht Engineering Co.

R. P. Griffiths, U.S. Coast Guard

T. A. McMahon, Emerson Process Management

M. L. Nayyar, Bechtel Power Corp.

W. H. Patrick, The Dow Chemical Co.

R. A. Schmidt, Canadoil

D. R. Sharp, The American Society of Mechanical Engineers

H. R. Sonderegger, Fluoroseal, Inc.

W. M. Stephan, Flexitallic, L.P.

F. R. Volgstadt, Volgstadt and Associates, Inc.

D. A. Williams, Southern Company Generation


SUBCOMMITTEE B — THREADED FITTINGS (EXCEPT STEEL), FLANGES, AND FLANGED FITTINGS

K. Barron, Vice Chair, Ward Manufacturing

C. E. O’Brien, Secretary, The American Society of Mechanical Engineers

W. Bliss, Tyler Pipe Co.

R. W. Bonds, Ductile Iron Pipe Research Association

M. A. Clark, Nibco, Inc.

J. R. Holstrom, Val-Matic Valve and Manufacturing Corp.

A. A. Knapp, A. Knapp and Associates

W. H. Levan, Cast Iron Soil Pipe Institute

P. I. McGrath, Jr., Contributing Member, Consultant

W. N. McLean, B&L Engineering

J. K. Schultz, Conine Manufacturing Co., Inc.

G. L. Simmons, Charlotte Pipe and Foundry

G. T. Walden, Frischkorn, Inc.


vi


CORRESPONDENCE WITH THE B16 COMMITTEE


General. ASME Standards are developed and maintained with the intent to represent the consensus of concerned interests. As such, users of this Standard may interact with the Committee by requesting interpretations, proposing revisions, and attending Committee meetings. Corre- spondence should be addressed to:

Secretary, B16 Standards Committee

The American Society of Mechanical Engineers Three Park Avenue

New York, NY 10016-5990


As an alternative, inquiries may be submitted via email to: SecretaryB16@asme.org.

Proposing Revisions. Revisions are made periodically to the Standard to incorporate changes that appear necessary or desirable, as demonstrated by the experience gained from the application of the Standard. Approved revisions will be published periodically.

The Committee welcomes proposals for revisions to this Standard. Such proposals should be as specific as possible, citing the paragraph number(s), the proposed wording, and a detailed description of the reasons for the proposal, including any pertinent documentation.

Proposing a Case. Cases may be issued for the purpose of providing alternative rules when justified, to permit early implementation of an approved revision when the need is urgent, or to provide rules not covered by existing provisions. Cases are effective immediately upon ASME approval and shall be posted on the ASME Committee Web page.

Requests for Cases shall provide a Statement of Need and Background Information. The request should identify the Standard, the paragraph, figure or table number(s), and be written as a Question and Reply in the same format as existing Cases. Requests for Cases should also indicate the applicable edition(s) of the Standard to which the proposed Case applies.

Interpretations. Upon request, the B16 Committee will render an interpretation of any require- ment of the Standard. Interpretations can only be rendered in response to a written request sent to the Secretary of the B16 Standards Committee.

The request for interpretation should be clear and unambiguous. It is further recommended that the inquirer submit his/her request in the following format:


Subject: Cite the applicable paragraph number(s) and the topic of the inquiry.

Edition: Cite the applicable edition of the Standard for which the interpretation is being requested.

Question: Phrase the question as a request for an interpretation of a specific requirement suitable for general understanding and use, not as a request for an approval of a proprietary design or situation. The inquirer may also include any plans or drawings that are necessary to explain the question; however, they should not contain proprietary names or information.


Requests that are not in this format will be rewritten in this format by the Committee prior to being answered, which may inadvertently change the intent of the original request.

ASME procedures provide for reconsideration of any interpretation when or if additional information that might affect an interpretation is available. Further, persons aggrieved by an interpretation may appeal to the cognizant ASME Committee or Subcommittee. ASME does not “approve,” “certify,” “rate,” or “endorse” any item, construction, proprietary device, or activity. Attending Committee Meetings. The B16 Standards Committee regularly holds meetings, which are open to the public. Persons wishing to attend any meeting should contact the Secretary of

the B16 Standards Committee.


vii


ASME B16.4-2011 SUMMARY OF CHANGES


Following approval by the ASME B16 Committee and ASME, and after public review, ASME B16.4-2011 was approved by the American National Standards Institute on August 9, 2011.


ASME B16.4-2011 includes the following changes identified by a margin note, (11). In addition, in the main text, the “General” section was moved to section 2, and the subsequent sections and their paragraphs were renumbered accordingly.


Page

Location

Change

19

Mandatory Appendix II

Updated


viii

ASME B16.4-2011


GRAY IRON THREADED FITTINGS

CLASSES 125 AND 250


  1. SCOPE

    This Standard for gray iron threaded fittings,

    Classes 125 and 250, covers

    1. pressure–temperature ratings

    2. sizes and method of designating openings of reducing fittings

    3. marking

    4. material

    5. dimensions and tolerances

    6. threading

    7. coatings

      Mandatory Appendix I provides table values in

      U.S. Customary units.


  2. GENERAL

    1. References

      Standards and specifications adopted by reference in this Standard are shown in Mandatory Appendix II, which is part of this Standard. It is not considered practi- cal to identify the specific edition of each referenced standard and specification in the text, when referenced. Instead, the specific editions of the referenced standards and specifications are listed in Mandatory Appendix II.

    2. Quality Systems

      Requirements relating to the product manufacturers’ quality system programs are described in Nonmandatory Appendix A.

    3. Relevant Units

      This Standard states values in both SI (Metric) and

      U.S. Customary units. These systems of units are to be regarded separately as standard. Within the text, the

      U.S. Customary units are shown in parentheses or in separate tables that appear in Mandatory Appendix I. The values stated in each system are not exact equiva- lents; therefore, it is required that each system of units be used independently of the other. Combining values from the two systems constitutes nonconformance with the Standard.

    4. Service Conditions

      Criteria for selection of materials suitable for particu- lar fluid service are not within the scope of this Standard.

    5. Convention

      For determining conformance with this Standard, the convention for fixing significant digits where limits (maximum and minimum values) are specified shall be as defined in ASTM E29. This requires that an observed or calculated value be rounded off to the nearest unit in the last right-hand digit used for expressing the limit. Decimal values and tolerances do not imply a particular method of measurement.

    6. Denotation

      1. Pressure Rating Designation. Class, followed by a dimensionless number, is the designation for pressure–temperature ratings as follows: Class 125 and Class 250.

      2. Size. NPS, followed by a dimensionless num- ber, is the designation for nominal fitting size. NPS is related to the reference nominal diameter, DN, used in international standards. The relationship is, typically, as follows:

NPS DN


1 25

11⁄4 32

11⁄2 40

2 50

21⁄2 65

3 80

31⁄2 ...

4 100

GENERAL NOTE: For NPS  4, the related DN p 25 NPS.


3 PRESSURE–TEMPERATURE RATINGS

  1. Pressure–temperature ratings for these fittings are shown in Tables 1 and I-1.

  2. All ratings are independent of the contained fluid and are the maximum allowable working gage pressures at the tabulated temperatures. Intermediate ratings may be obtained by linear interpolation between the temper- atures shown.

  3. The temperatures shown for the corresponding pressure rating shall be the material temperature of the pressure-retaining structure. It may be assumed that the material temperature is the same as the fluid tempera- ture. Use of a pressure rating at a material temperature


1
