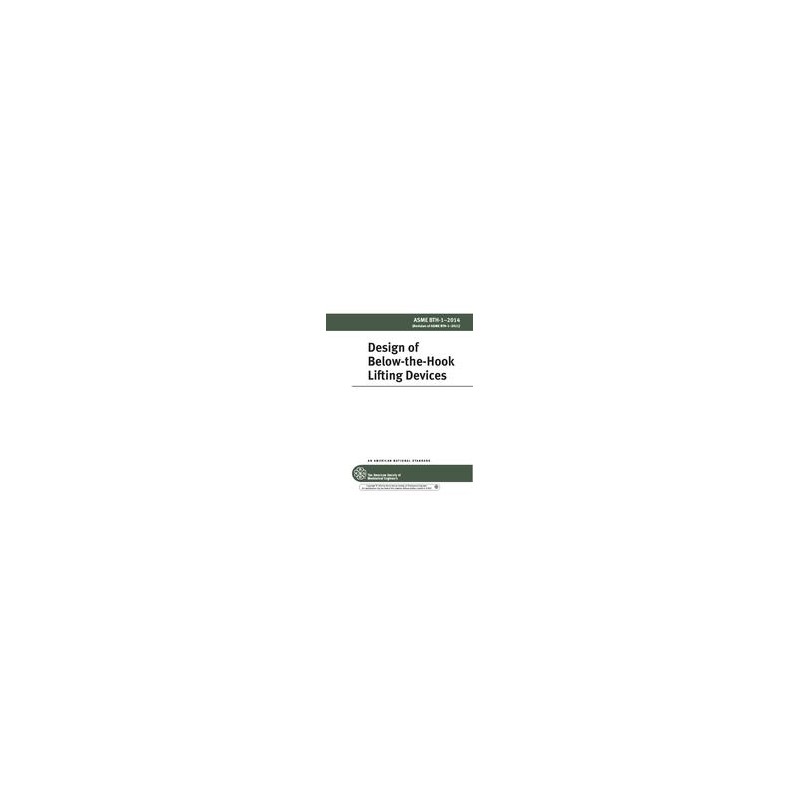

ASME BTH-1-2014 Design of Below-the-Hook Lifting Devices

standard by ASME International, 10/29/2014

Full Description

ASME has been defining crane safety since 1916.

BTH-1 provides minimum structural and mechanical design and electrical component selection criteria for ASME B30.20 below-the-hook lifting devices. The provisions in this Standard apply to the design or modification of below-the-hook lifting devices. Compliance with requirements and criteria that may be unique to specialized industries and environments is outside of the scope of this Standard. Lifting devices designed to this Standard shall comply with ASME B30.20, Below-the-Hook Lifting Devices. ASME B30.20 includes provisions that apply to the marking, construction, installation, inspection, testing, maintenance, and operation of below-the-hook lifting devices.

ASME BTH-1 addresses only design requirements. As such, this Standard should be used in conjunction with ASME B30.20, which addresses safety requirements. ASME BTH-1 does not replace ASME B30.20. The design criteria set forth are minimum requirements that may be increased at the discretion of the lifting device manufacturer or a qualified person.

ASME BTH-1 and ASME B30.20 are to be used in conjunction with equipment described in other volumes of the ASME B30 series of safety standards.

More details

In stock

$26.40

-56%

$60.00

More info

007401U001


Design of

Below-the-Hook Lifting Devices


AN A MERICAN NA TIONAL S T AND ARD





Errata to

ASME BTH-1–2014

Design of Below-the-Hook Lifting Devices


On page 13, in the nomenclature for eq. (3-17), the second definition for CLTB has been corrected by errata to replace the square root sign in the numerator with parentheses. The correct equation is shown below.



CLTB p

2.00 (EIx/GJ) (Lb/bf)2


+ 0.275  1.00


THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS

Two Park Avenue, New York, NY 10016-5990 January 2015


J0175E


ASME BTH-1–2014

(Revision of ASME BTH-1–2011)

ASME BTH-1–2014

(Revision of ASME BTH-1–2011)


Design of Below-the-Hook Lifting Devices



AN AMERICAN NA TIONAL S T AND ARD



Two Park Avenue • New York, NY • 10016 USA


Date of Issuance: October 29, 2014


The next edition of this Standard is scheduled for publication in 2017. This Standard will become effective 1 year after the Date of Issuance.


ASME issues written replies to inquiries concerning interpretations of technical aspects of this Standard. Interpretations may be accessed as they are issued at https://go.asme.org/interpretations. They are published on the ASME Web site under the Committee Pages at https://cstools.asme.org/.


Errata to codes and standards may be posted on the ASME Web site under the Committee Pages to provide corrections to incorrectly published items, or to correct typographical or grammatical errors in codes and standards. Such errata shall be used on the date posted.


The Committee Pages can be found at https://cstools.asme.org/. There is an option available to automatically receive an e-mail notification when errata are posted to a particular code or standard. This option can be found on the appropriate Committee Page after selecting “Errata” in the “Publication Information” section.


ASME is the registered trademark of The American Society of Mechanical Engineers.


This code or standard was developed under procedures accredited as meeting the criteria for American National Standards. The Standards Committee that approved the code or standard was balanced to assure that individuals from competent and concerned interests have had an opportunity to participate. The proposed code or standard was made available for public review and comment that provides an opportunity for additional public input from industry, academia, regulatory agencies, and the public-at-large.

ASME does not “approve,” “rate,” or “endorse” any item, construction, proprietary device, or activity.

ASME does not take any position with respect to the validity of any patent rights asserted in connection with any items mentioned in this document, and does not undertake to insure anyone utilizing a standard against liability for infringement of any applicable letters patent, nor assumes any such liability. Users of a code or standard are expressly advised that determination of the validity of any such patent rights, and the risk of infringement of such rights, is entirely their own responsibility.

Participation by federal agency representative(s) or person(s) affiliated with industry is not to be interpreted as government or industry endorsement of this code or standard.

ASME accepts responsibility for only those interpretations of this document issued in accordance with the established ASME procedures and policies, which precludes the issuance of interpretations by individuals.


No part of this document may be reproduced in any form, in an electronic retrieval system or otherwise,

without the prior written permission of the publisher.


The American Society of Mechanical Engineers Two Park Avenue, New York, NY 10016-5990


Copyright © 2014 by

THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS

All rights reserved Printed in U.S.A.


CONTENTS
