ASME PTC-29-2005 (R2020) Speed Governing Systems for Hydraulic Turbine Generator Units

standard by ASME International, 10/31/2005

Full Description

This Code applies to speed governors used on conventional, constant-speed hydraulic turbines. This Code is applicable to electronic-hydraulic and mechanical-hydraulic speed governors. These governors are commonly used to control reaction and impulse-type-hydraulic turbines (fixed or variable geometry) and pump turbines operating in generation mode.

This Code specifies procedures for conducting tests to determine the following performance characteristics of hydraulic turbine speed governors:

(a) droop:
(1) permanent,
(2) temporary;

(b) deadband and deadtime:
(1) speed,
(2) position,
(3) power;

(c) stability index:
(1) governing speedband,
(2) governing powerband;

(d) step response;

(e) gain:
(1) proportional gain,
(2) integral gain,
(3) derivative gain;

(f) setpoint adjustment:
(1) range of adjustment,
(2) ramp rate.

This Code also establishes the rules and procedures for the conduct of tests to determine the following operational characteristics of hydraulic turbine speed governors:
(a) gate/blade relationship (dual regulated reaction turbines),
(b) needle/deflector relationship (impulse turbines),
(c) full-rate servomotor timing and cushion time.

More details

In stock

$44.88

-56%

$102.00

More info

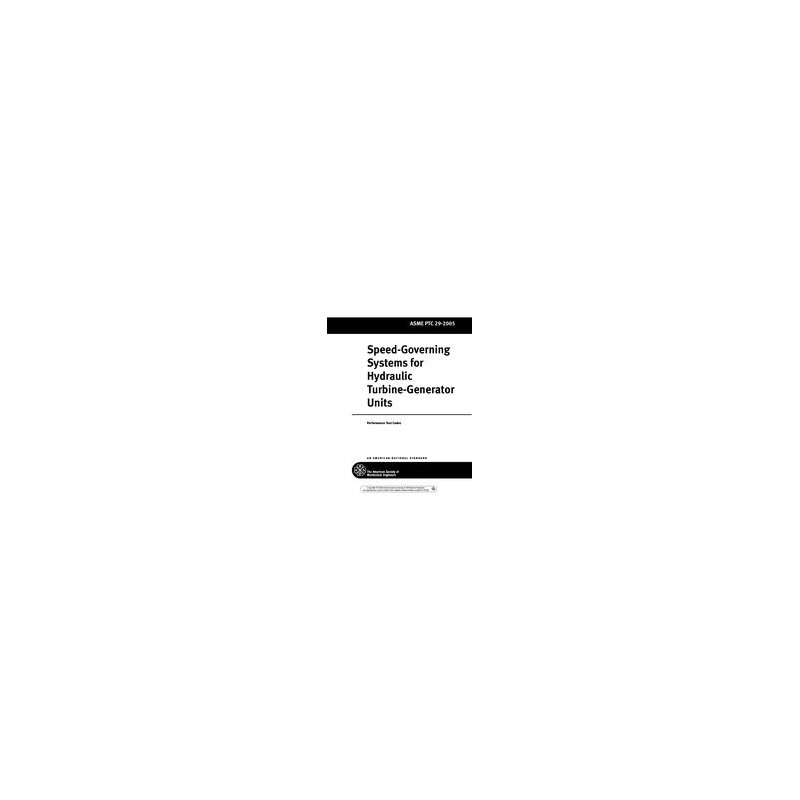

byqd4coe


Speed-Governing

Systems for Hydraulic

Turbine-Generator Units



Performance Test Codes


A N A M E R I C A N N A T I O N A L S T A N D A R D


ASME PTC 29-2005

ASME PTC 29-2005


Speed-Governing Systems for Hydraulic Turbine-Generator Units


Performance Test Codes


AN AMERICAN NATIONAL STANDARD



Three Park Avenue • New York, NY 10016


Date of Issuance: October 31, 2005


This Code will be revised when the Society approves the issuance of a new edition. There will be no addenda issued to ASME PTC 29-2005.

ASME issues written replies to inquiries as code cases and interpretations of technical aspects of this document. Code cases and interpretations are published on the ASME website under the Committee Pages at https://www.asme.org/codes/ as they are issued.


ASME is the registered trademark of The American Society of Mechanical Engineers.


This code or standard was developed under procedures accredited as meeting the criteria for American National Stan- dards. The Standards Committee that approved the code or standard was balanced to assure that individuals from com- petent and concerned interests have had an opportunity to participate. The proposed code or standard was made avail- able for public review and comment that provides an opportunity for additional public input from industry, academia, regulatory agencies, and the public-at-large.

ASME does not approve, rate, or endorse any item, construction, proprietary device, or activity.

ASME does not take any position with respect to the validity of any patent rights asserted in connection with any items mentioned in this document, and does not undertake to insure anyone utilizing a standard against liability for infringe- ment of any applicable letters patent, nor assume any such liability. Users of a code or standard are expressly advised that determination of the validity of any such patent rights, and the risk of infringement of such rights, is entirely their own responsibility.

Participation by federal agency representative(s) or person(s) affiliated with industry is not to be interpreted as gov- ernment or industry endorsement of this code or standard.

ASME accepts responsibility for only those interpretations of this document issued in accordance with the established ASME procedures and policies, which precludes the issuance of interpretations by individuals.


No part of this document may be reproduced in any form, in an electronic retrieval system or otherwise,

without the prior written permission of the publisher.


The American Society of Mechanical Engineers Three Park Avenue, New York, NY 10016-5990


Copyright © 2005 by

THE AMERICAN SOCIETY OF MECHANICAL ENGINEERS

All rights reserved Printed in U.S.A.


CONTENTS


Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

v

Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vi

Committee Roster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vii

Correspondence With the PTC 29 Committee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ix

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

x

Section 1 Object and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1-1 Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1-2 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1-3 Test Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Section 2 Definitions and Descriptions of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Section 3 Guiding Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

3-1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

3-2 Preparations for Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

3-3 Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

3-4 Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

3-5 Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

3-6 Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Section 4 Instruments and Methods of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

4-1 Instrument Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

4-2 Performance Tests — Electronic Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

4-3 Operational Tests — Electronic Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

4-4 Performance Tests — Mechanical Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5 Operational Tests — Full Rate Servomotor Time and Servomotor Cushion Time for Mechanical Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16


18

Section 5 Computation of Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

5-1 Data Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

5-2 Performance Test Results — Electronic Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

5-3 Operational Test Results — Electronic Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

5-4 Performance Test Results — Mechanical Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

5-5 Operational Test Results — Mechanical Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Section 6 Report of Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

6-1 General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

6-2 Test Report Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

6-3 Uncertainty Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Section 7 Optional Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

7-1 Overspeed Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

7-2 Load Rejection Tests — On Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

7-3 Accumulator Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

7-4 Accumulator Active Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

7-5 Oil Pump Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

7-6 Hydraulic System Pressure Control Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

7-7 Steady-State Oil Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

7-8 Frequency Response Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25


Figures

    1. Damping Time Constant 6

    2. Deadband 6

    3. Deadtime 6

    4. Derivative Gain 6

    5. Power Droop 7

    6. Servomotor Time 7

    7. Speed Droop 7

    1. Temporary Droop 11

    2. Speed Deadband 11

    3. Position Deadband 12

    4. Position Deadtime 12

    1. Speed Deadband (Sample Test Plots) 19

    2. Speed Deadtime 20

    3. Position Deadband (Sample Test Plots) 20

    4. Position Deadtime (Sample Test Plots) 20

    5. Power Deadband 20

    6. Steady-State Speed Band 21

    7. Steady-State Power Band 21

    8. Step Response 21

    1. Frequency Response Test Setup 26

    2. Frequency Response Inputs and Outputs 27

    3. Frequency Response Diagram 27

Tables

1-1 Allowable Test Uncertainties 2

2-1 Definitions 3

5-1 Permanent Droop 22

7-1 Customary Frequency Response Tests 26

Nonmandatory Appendix

A Uncertainty Analysis 29


NOTICE


All Performance Test Codes must adhere to the requirements of ASME PTC 1, General Instruc- tions. The following information is based on that document and is included here for emphasis and for the convenience of the user of the Code. It is expected that the Code user is fully cog- nizant of Sections 1 and 3 of ASME PTC 1 and has read them prior to applying this Code.

ASME Performance Test Codes provide test procedures that yield results of the highest level of accuracy consistent with the best engineering knowledge and practice currently available. They were developed by balanced committees representing all concerned interests and specify proce- dures, instrumentation, equipment-operating requirements, calculation methods, and uncertainty analysis.

When tests are run in accordance with a Code, the test results themselves, without adjustment for uncertainty, yield the best available indication of the actual performance of the tested equip- ment. ASME Performance Test Codes do not specify means to compare those results to contrac- tual guarantees. Therefore, it is recommended that the parties to a commercial test agree before starting the test and preferably before signing the contract on the method to be used for com- paring the test results to the contractual guarantees. It is beyond the scope of any Code to de- termine or interpret how such comparisons shall be made.


FOREWORD


A Joint AIEE–ASME (IEEE–ASME) Subcommittee on a Recommended Specification Covering the Speed Governing of Hydraulic Turbine-Generators was organized in 1944. The specifications prepared by this subcommittee were issued in September 1950 as AIEE (IEEE) Publication No. 605 entitled “Recommended Specification for Speed-Governing of Hydraulic Turbines Intended to Drive Electric Generators.”

As a result of the publication of these specifications, the ASME Board on Power Test Codes Committee recognized the need of a code for testing hydraulic turbine governors and organized Power Test Code Committee No. 29 in 1955 to prepare this document.

This committee prepared a code that was approved by the Power Test Codes Committee on March 7, 1963. Final publication was delayed, however, until a number of suggestions made by the standing committee were considered and satisfactorily resolved. Reconciliation of these com- ments was effected through the efforts of Mr. W. K. Cave, member of the committee, who un- dertook to complete the assignment on behalf of the group. The code was approved and adopted by the Council of the Society by action of the Board of Codes and Standards on December 9, 1964. In February 1993, through the efforts of the Board on Performance Test Codes’ member George

H. Mittendorf, Jr., the Performance Test Code (PTC) Committee 29 was reestablished to update the code.

The members of PTC Committee 29 wish to dedicate this document to the memory of William (Bill) Duncan. Bill served as the Committee’s Vice Chairman from 1993 until his untimely death in an airplane crash on October 8, 1997. Bill’s accomplishments were many, but nothing was more significant than organizing and supporting the validation of the draft of this code with actual site testing of an hydraulic turbine governor.

ASME PTC 29-2004 was adopted by the American National Standards Institute as an Ameri- can National Standard on February 23, 2005.


PERFORMANCE TEST CODE COMMITTEE 29

ON SPEED GOVERNING SYSTEMS FOR HYDRAULIC TURBINE GENERATOR UNITS


(The following is the roster of the Committee at the time of approval of this Code.)


COMMITTEE OFFICERS


R. A. Johnson, Chair

I. T. Laczo, Vice Chair

M. A. Brookes, Secretary


COMMITTEE PERSONNEL


C. Boireau, Alstom

M. A. Brookes, The American Society of Mechanical Engineers

R. Clarke-Johnson, American Governor Co.

W. Duncan

T. Ellesfrod, Norconsult

R. A. Johnson, Safe Harbor Water Power Corp.

D. R. Keyser, Liaison Member, Information Network Systems, Inc.

D. Kornegay, North American Hydro, LLC

I. T. Laczo, MWH

G. F. McCavitt, MWH

G. H. Mittendorf, Jr., Liaison Member, Consultant

R. A. Vaughn, U.S. Army Corps of Engineers

D. A. Warner, GE Energy Services

L. Wozniak, University of Illinois at Urbana-Champaign


BOARD ON PERFORMANCE TEST CODES


OFFICERS


J. G. Yost, Chair

J. R. Friedman, Vice Chair

S. D. Weinman, Secretary


BOARD PERSONNEL


P. G. Albert, General Electric Co.

R. P. Allen, Consultant

J. M. Burns, Burns Engineering

W. C. Campbell, Southern Co. Services

M. J. Dooley, Alstom Power

A. J. Egli, Alstom Power

J. R. Friedman, Siemens-Westinghouse Power Corp.

G. J. Gerber, Praxair, Inc.

P. M. Gerhart, University of Evansville

T. C. Heil, Consultant

R. A. Johnson, Safe Harbor Water Power Corp.

T. S. Jonas, Tenaska, Inc.

D. R. Keyser, Information Network Systems, Inc.

S. J. Korellis, Dynegy Midwest Generation

M. P. McHale, McHale & Associates, Inc.

P. M. McHale, McHale & Associates, Inc.

J. W. Milton, Environmental Systems Corp.

S. P. Nuspl, Babcock & Wilcox, Inc.

A. L. Plumley, Plumley Associates

R. R. Priestley, General Electric Co.

J. A. Rabensteine, Environmental Systems Corp.

J. W. Siegmund, Sheppard T. Powell Associates

J. A. Silvaggio, Jr., Siemens Demag Delaval Turbomachinery

W. G. Steele, Jr., Mississippi State University

S. D. Weinman, The American Society of Mechanical Engineers

J. C. Westcott, Westcott Enterprises, Inc.

W. C. Wood, Duke Power Co.

J. G. Yost, Sargent & Lundy


CORRESPONDENCE WITH THE PTC 29 COMMITTEE


General. ASME Codes are developed and maintained with the intent to represent the consen- sus of concerned interests. As such, users of this Code may interact with the Committee by re- questing interpretations, proposing revisions, and attending Committee meetings. Correspon- dence should be addressed to:

Secretary, PTC 29 Standards Committee

The American Society of Mechanical Engineers Three Park Avenue

New York, NY 10016-5990

Proposing Revisions. Revisions are made periodically to the Code to incorporate changes that appear necessary or desirable, as demonstrated by the experience gained from the application of the Code. Approved revisions will be published periodically.

The Committee welcomes proposals for revisions to this Code. Such proposals should be as specific as possible, citing the paragraph number(s), the proposed wording, and a detailed de- scription of the reasons for the proposal, including any pertinent documentation.

Interpretations. Upon request, the PTC 29 Committee will render an interpretation of any re- quirement of the Code. Interpretations can only be rendered in response to a written request sent to the Secretary of the PTC 29 Standards Committee.

The request for interpretation should be clear and unambiguous. It is further recommended that the inquirer submit his/her request in the following format:

Subject: Cite the applicable paragraph number(s) and the topic of the inquiry.

Edition: Cite the applicable edition of the Code for which the interpretation is being requested.

Question: Phrase the question as a request for an interpretation of a specific require- ment suitable for general understanding and use, not as a request for an ap- proval of a proprietary design or situation. The inquirer may also include any plans or drawings which are necessary to explain the question; however, they should not contain proprietary names or information.

Requests that are not in this format will be rewritten in this format by the Committee prior to being answered, which may inadvertently change the intent of the original request.

ASME procedures provide for reconsideration of any interpretation when or if additional in- formation that might affect an interpretation is available. Further, persons aggrieved by an in- terpretation may appeal to the cognizant ASME Committee or Subcommittee. ASME does not “approve,” “certify,” “rate,” or “endorse” any item, construction, proprietary device, or activity. Attending Committee Meetings. The PTC 29 Standards Committee holds meetings or telephone conferences, which are open to the public. Persons wishing to attend any meeting or telephone conference should contact the Secretary of the PTC 29 Standards Committee or check our Web

site, https://www.asme.org/codes/.


INTRODUCTION


This Test Code provides uniform methods and pro- cedures for conducting and reporting of performance tests on speed governors applied to conventional hy- draulic turbines. The tests described in this Code may be performed in the factory or at the jobsite. A working knowledge of hydraulic turbine controls, speed gover- nor fundamentals, test measurement methods, and the application and use of test and measurement equipment are presumed prerequisites.

This Code was prepared with attention paid to other national and international standards for speed gover- nors. Specifically, the tests described in this Code are useful in determining compliance with IEEE 125 and IEC 308. Unless otherwise specified, all references within this Code refer to other ASME performance test

codes and standards, including, but not limited to, Definitions and Values (PTC 2) and Supplements on In- struments and Apparatus (PTC 19 series). These auxil- iary documents, where and to the extent applicable, form a part of this Code.

This Code includes three general categories of tests: performance tests, operational tests, and optional tests. The performance and operational tests form the body of the Code, and are required to qualify as a Code test. The optional tests are intended to offer guidance in ancillary governor functions that do not affect governor per- formance and are appended to this Code. An uncer- tainty analysis is also appended to the Code to serve as a guide to determining the uncertainty of the test results.

ASME PTC 29-2005


SPEED-GOVERNING SYSTEMS FOR HYDRAULIC TURBINE-GENERATOR UNITS


Section 1

Object and Scope

ASME Performance Test Codes (PTCs) provide uni- form rules and procedures for the planning, prepara- tion, execution, and reporting of performance test re- sults. These codes provide guidelines for test procedures which yield results of the highest level of accuracy based on current engineering knowledge, taking into account test costs and the value of information obtained from testing. PTCs were developed by balanced committees representing many concerned interests.

When tests are conducted in accordance to a code, the test results themselves, without adjustment for uncer- tainty, yield the best available indication of actual per- formance of the equipment tested. ASME PTCs do not specify means to compare those results to contractual guarantees. Therefore, it is recommended that the par- ties to a commercial test agree, before starting the test and preferably prior to signing the contract, on the method to be used for comparing the results to the con- tractual guarantees. It is beyond the scope of any PTC to determine or interpret how such comparisons are made.

Test uncertainty is an estimate of the limit of error of a test result. It is the interval about a test result that con- tains the true value with a given probability or level of confidence. It is based on calculations utilizing statistics, instrumentation information, calculation procedure, and actual test data.

Code tests are suitable for use whenever performance must be determined with minimum uncertainty. They are meant specifically for equipment operating in an in- dustrial setting.

PTCs are generally not used in troubleshooting equipment. However, they can be used to quantify the magnitude of performance anomalies of equipment that is suspected to be performing poorly, or to con- firm the need for maintenance, if simpler means are not adequate. PTCs are excellent sources or references for simpler routine or special equipment test proce- dures. Conducting periodic performance tests on equipment can uncover the need for further investiga- tion, which can lead to preventative maintenance or modification.

    1. OBJECT

      This Code defines uniform test methods and proce- dures to determine the performance characteristics of a hydraulic turbine speed governor. It is intended that this Code may be applied to either factory acceptance test- ing of a new speed governor or evaluation of an exist- ing speed governor.


    2. SCOPE

      This Code applies to speed governors used on con- ventional, constant-speed hydraulic turbines. This Code is applicable to electronic-hydraulic and mechanical- hydraulic speed governors. These governors are com- monly used to control reaction and impulse-type hy- draulic turbines (fixed or variable geometry) and pump turbines operating in generation mode.


      1-2.1 Performance Characteristics

      This Code specifies procedures for conducting tests to determine the following performance characteristics of hydraulic turbine speed governors:

      1. droop

        1. ) permanent

        2. ) temporary

      2. ) deadband and deadtime

        1. speed

        2. ) position

        3. ) power

      3. stability index

        1. ) governing speedband

        2. ) governing powerband

      4. ) step response

      5. gain

        1. proportional gain

        2. integral gain

        3. derivative gain

( f ) setpoint adjustment

  1. ) range of adjustment

  2. ) ramp rate


1-2.2 Operational Characteristics

This Code also establishes the rules and procedures for the conduct of tests to determine the following


1
