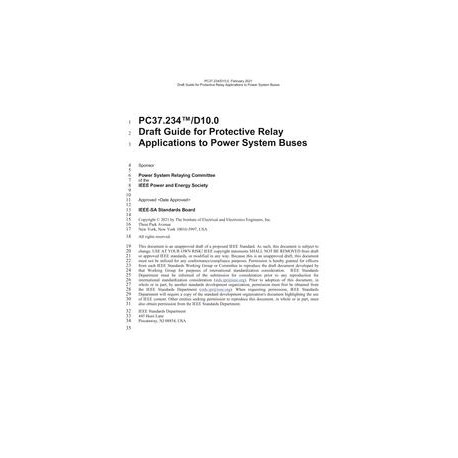

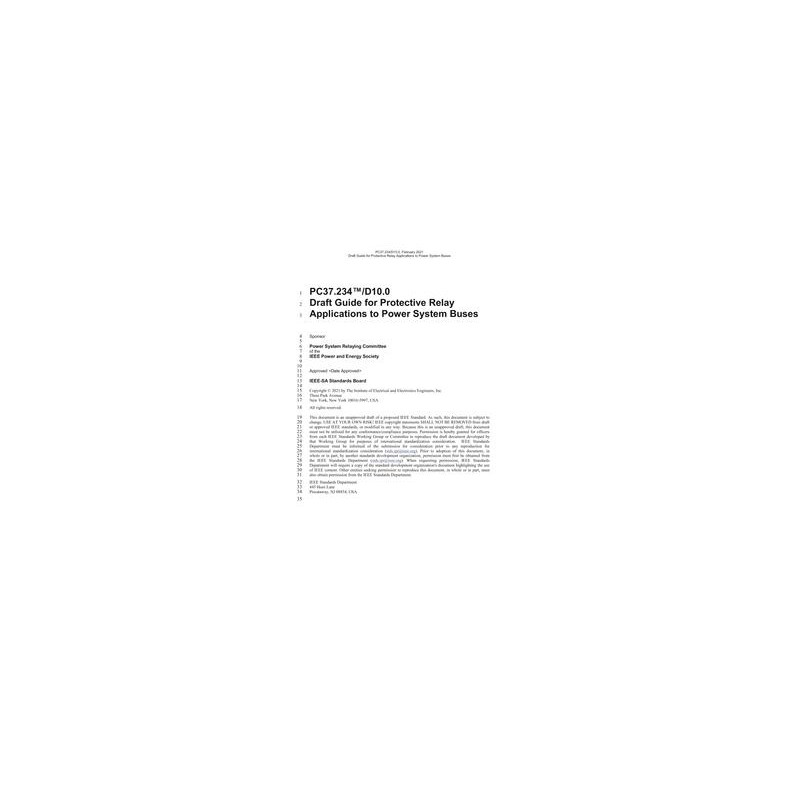

IEEE PC37.234 IEEE Approved Draft Guide for Protective Relay Applications to Power System Buses

standard by IEEE, 02/07/2022

Full Description

Scope

Concepts of power bus protection are discussed in this guide. Consideration is given to availability and location of breakers, current sensing devices, and disconnect switches, as well as bus-switching scenarios, and their impact on the selection and application of bus protection. A number of bus protection schemes are presented; their adequacy, complexity, strengths, and limitations with respect to a variety of bus arrangements are discussed; specific application guidelines are provided. Breaker failure (BF) protection is discussed as pertaining to bus protection. Means of securing bus protection schemes against corrupted relay input signals are also included.

Purpose

The purpose of the guide is to assist utility engineers and industrial and commercial plant engineers in selecting and engineering proper bus protection.

Abstract

Revision Standard - Active - Draft.This guide discusses principles of power bus protection. It addresses availability and location of breakers, current sensing devices, and disconnect switches as well as bus configurations and switching schemes and their impact on the selection and application of bus protection. Bus protection schemes are presented, and their characteristics, strengths, and limitations are examined. Bus protection applications are presented.

Product Details

Published: 02/07/2022 ISBN(s): 9781504479103 Number of Pages: 135 File Size: 1 file , 1.8 MB Product Code(s): STDAPE24905
