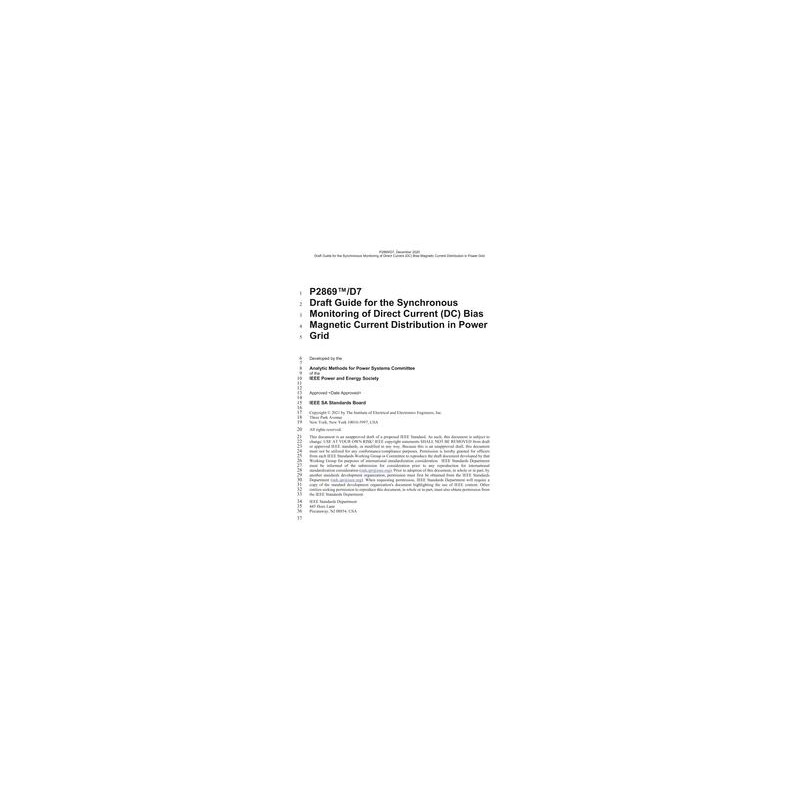

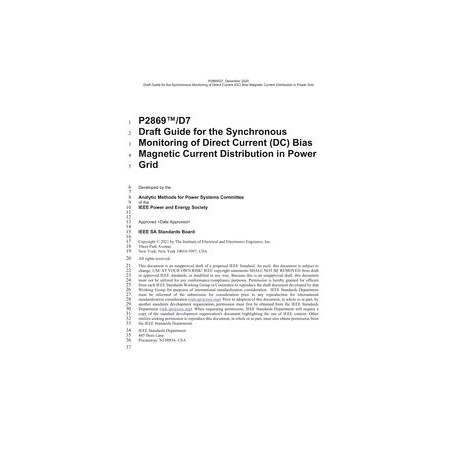

IEEE 2869-2021 IEEE Guide for the Synchronous Monitoring of Direct Current (DC) Bias Magnetic Current Distribution in Power Grid

standard by IEEE, 12/15/2021

Full Description

Scope

This guide specifies the synchronous monitoring method, the layout principle, and the analysis of monitoring results of direct current (dc) magnetic bias current distribution on transmission networks 110 kV and above from transformers (including converter transformers). This guide does not discuss the effect of dc or geomagnetically induced current (GIC) on transformers.

Abstract

New IEEE Standard - Active.The synchronous monitoring method, the layout principle, and the analysis of monitoring results of direct current (dc) magnetic bias current distribution on transmission networks 110 kV and above from transformers (including converter transformers) are specified in this guide. This guide does not discuss the effect of dc or geomagnetically induced current (GIC) on transformers.

Product Details

Published: 12/15/2021 ISBN(s): 9781504480093, 9781504480109, 9781504482653 Number of Pages: 34 File Size: 1 file , 2.6 MB Product Code(s): STD24971, STDPD24971, STDPL25150
