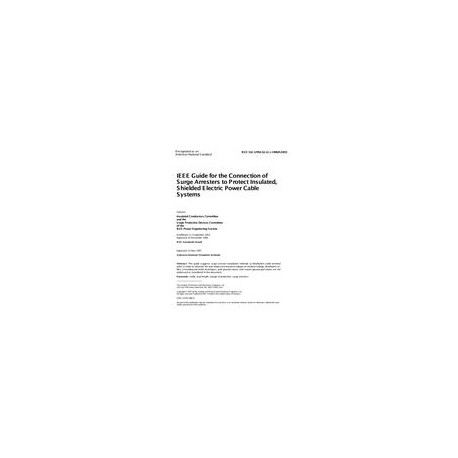

IEEE C62.22.1-1996 IEEE Guide for the Connection of Surge Arresters to Protect Insulated, Shielded Electric Power Cable Systems

standard by IEEE, 12/31/1997

Full Description

Scope

Surge arrester installation intended to provide overvoltage protection of insulated, shielded conductors for distribution and transmission systems.

Purpose

Over voltage protection of insulated conductors may be compromised with incorrect connection techniques. At present, there is little literature available that addresses connection practices for arresters to protect insulated, shielded conductors. The purpose of the guide will be to suggest suitable connection techniques to improve overvoltage protection schemes involving shielded conductors.

Abstract

New IEEE Standard - Inactive-Reserved.This guide suggests surge arrester installation methods at distribution cable terminal poles in order to minimize the total impressed transient voltage on medium-voltage distribution cables. Grounding electrode techniques, pole ground values, and system ground grid values are not addressed or considered in this document.

Product Details

Published: 12/31/1997 ISBN(s): 9780738108087, 9781559378680 Number of Pages: 28 File Size: 1 file , 160 KB Same As: IEEE 1299-1996 Product Code(s): STD94474, STDRES94474, STDPD94474
