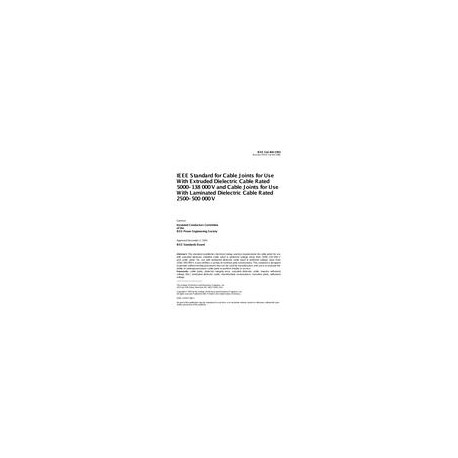

IEEE 404-1993 IEEE Standard for Cable Joints for Use With Extruded Dielectric Cable Rated 5000-138 000 V and Cable Joints for Use With Laminated Dielectric Cable Rated 2500-500 000 V

standard by IEEE, 07/19/1994

Full Description

Scope

This standard establishes electrical ratings and test requirements for cable joints for use with extruded dielectric shielded cable rated in preferred voltage steps from 5000¿¿¿138 000 V and cable joints for use with laminated dielectric cable rated in preferred voltage steps from 2500¿¿¿500 000 V. It also defines a variety of common joint constructions. Joints that connect more than two cables or connect cables with two different conductor sizes (other than transition joints) are not covered by this standard. However, manufacturers and users are encouraged to use appropriate parts of this standard to evaluate these joints.

Abstract

Revision Standard - Superseded.This standard establishes electrical ratings and test requirements for cable joints for use with extruded dielectric shielded cable rated in preferred voltage steps from 5000--138 000 V and cable joints for use with laminated dielectric cable rated in preferred voltage steps from 2500--500 000 V. It also defines a variety of common joint constructions. This standard is designed to provide uniform testing procedures that can be used by manufacturers and users to evaluate the ability of underground power cable joints to perform reliably in service.

Product Details

Published: 07/19/1994 ISBN(s): 9780738130583 Number of Pages: 17 File Size: 1 file , 66 KB Product Code(s): STDSU16980
