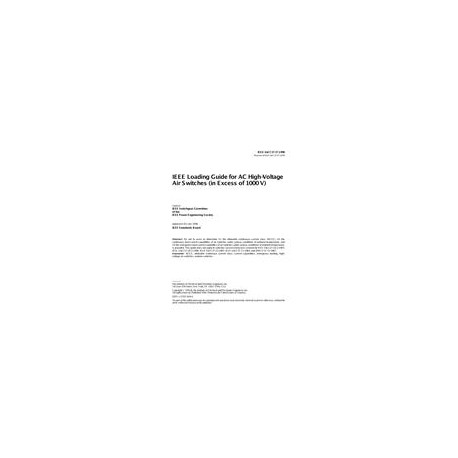

IEEE C37.37-1996 IEEE Loading Guide for AC High-Voltage Air Switches (in Excess of 1000 V)

standard by IEEE, 12/20/1996

Full Description

Scope

This loading guide applies to ac high-voltage air switches in excess of 1000 V rated in accordance with IEEE StdC37.30-1992.1 This standard does not apply to switches used in enclosures covered by IEEE Std C37.20.2-1993, IEEE Std C37.20.3-1996, IEEE Std C37.23-1987, IEEE Std C37.71-1984, and ANSI C37.72-1987. Moreover, interrupter switches covered by IEEE. PC37.39 are excluded from the scope of this standard. If an air switch is equipped with a load-break device or interrupter, it may not successfully interrupt currents above the nameplate rating.

Purpose

The purpose of this guide is to aid users and manufacturers in the determination of:a) The allowable continuous current class (ACCC) designations.b) The continuous load current capabilities of air switches under various conditions of ambient temperature.c) The emergency load current capabilities of air switches under various conditions of ambient temperature.

Abstract

Revision Standard - Superseded.An aid to users to determine (1) the allowable continuous current class (ACCC), (2) the continuous load current capabilities of air switches under various conditions of ambient temperature, and (3) the emergency load current capabilities of air switches under various conditions of ambient temperature, is provided. This guide does not apply to switches used in enclosures covered by IEEE Std C37.20.2-1993, IEEE Std C37.20.3-1996, IEEE Std C37.23-1987, IEEE Std C37.71-1984, and ANSI C37.72-1987. (Superseded by IEEE Std C37.30.1-2011)

Product Details

Published: 12/20/1996 ISBN(s): 9780738110684 Number of Pages: 14 File Size: 1 file , 310 KB Product Code(s): STDSU94455
