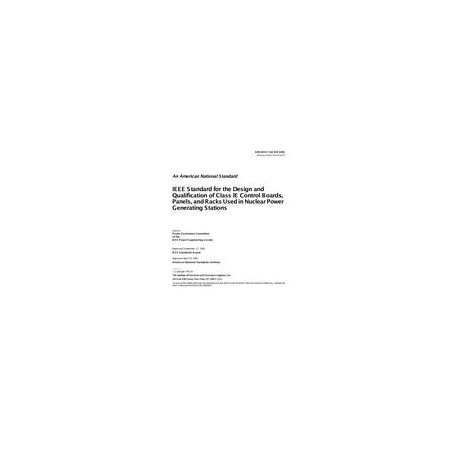

IEEE 420-1982 IEEE Standard for the Design and Qualification of Class 1E Control Boards, Panels, and Racks Used in Nuclear Power Generating Stations

standard by IEEE, 12/07/1982

Full Description

Scope

This standard specifies those design requirements which are unique to Class lE control boards, panels, and racks and provides standards for qualification tests to verify that these design requirements have been satisfied. It does not apply to:1) Non-Class lE components and modules except as they may affect the design and qualification of Class lE control boards, panels, and racks2) Qualification and test of individual Class lE control board components and modules3) External field run cables

Purpose

The purpose of this standard is to specify the design requirements for Class lE control boards, panels, and racks and to establish the methods to verify that these requirements have been satisfied.

Abstract

Revision Standard - Superseded.Design requirements that are unique to Class 1E control boards, panels, and racks are specified. Standards for qualification tests to verify that these design requirements have been satisfied are provided. This standard is not intended to define the selection, design, or qualification of piping, modules, or other equipment mounted on the Class 1E control boards, panels, or racks. It is concerned, however, with the effect such mounted equipment has on the design and qualifications. Qualification and testing of individual Class 1E control board components and modules and external field-run cables are not covered.

Product Details

Published: 12/07/1982 ISBN(s): 0738106925, 9780738133249 Number of Pages: 0 File Size: 1 file , 160 KB Product Code(s): STDSU88392
